Camera Type |

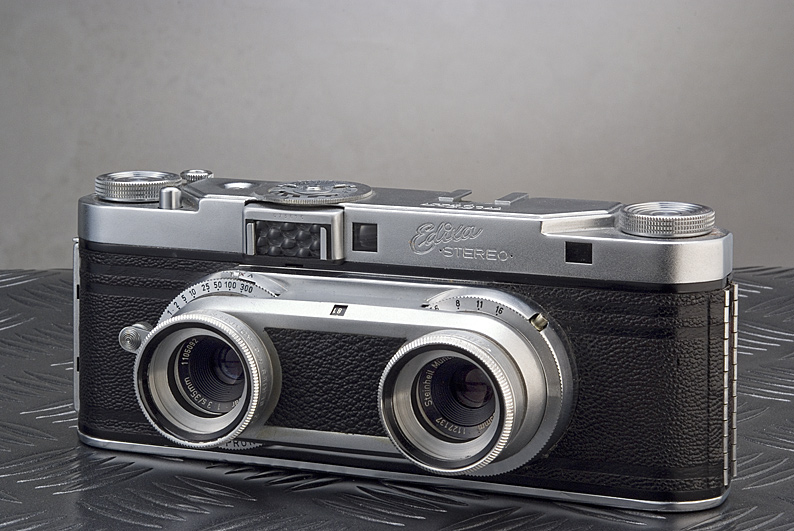

35 mm viewfinder stereo camera |
|
Manufacturer |
Kamerawerke Gebrüder Wirgin, Wiesbaden, Germany |
|
Year Introduced |
About 1954 |
|
Film |
135 cartridge |
|
Size |
197 x 77 x 55 mm (W x H x D) |
|
Weight |
772 grams (971 grams with everready case) |
|
Lens Separation |
70 mm |
|
Image Format |
24 x 23 mm (W x H) |
|
Image Window Separation |
71,20 mm |
|
Lenses |
Steinheil München Cassar (glass, matched), 1:3.5/35 mm, filter thread 25 mm |
|
Diaphragms |
IIris diaphragms between the lenses, continuously adjustable f/3.5 to f/16 |
|
Light meter |
Silicium Built-in Exposure Meter |
|
Focusing |
Manual, 3.3 ft. - infinity. Movement of the front elements |
|
Shutter |
Mechanical central type shutter (Pronto or Vario), between the lenses. Cocked with film advance. |
|
Shutter Speeds |
1/300, 1/100, 1/50, 1/25, 1/10, 1/5, 1/2, 1, and "B" |
|
Viewfinder |
Newton viewfinder (approx. 0,6x) |
|
Rangefinder |
Coupled Ragefinder Stereo |
|
Film Loading |
Manual |
|
Film Transport |
Manual, with rapid winding lever by 10 sprocket holes (= 47.5 mm), sprocket wheel on bottom |
|
Film Rewinding |
Manual. Unlocking with rewind release lever. |
|
Frame Counter |
Additive, 1 to 25. Manual reset. |
|
Flash Contact |
PC-Contact, accessory shoe (no contact) |
|
Tripod Socket |
¼“ / 20 TPI |
|
Selftimer |
|
|
Special Features |
Double exposures prevention |
|
Accessories |
Operating instructions, everready case |
|
Notes |
Other models were made (Edixa IA, Edixa IIA) |
|
|
|
|
|
|
|
|
|
