Camera Type |

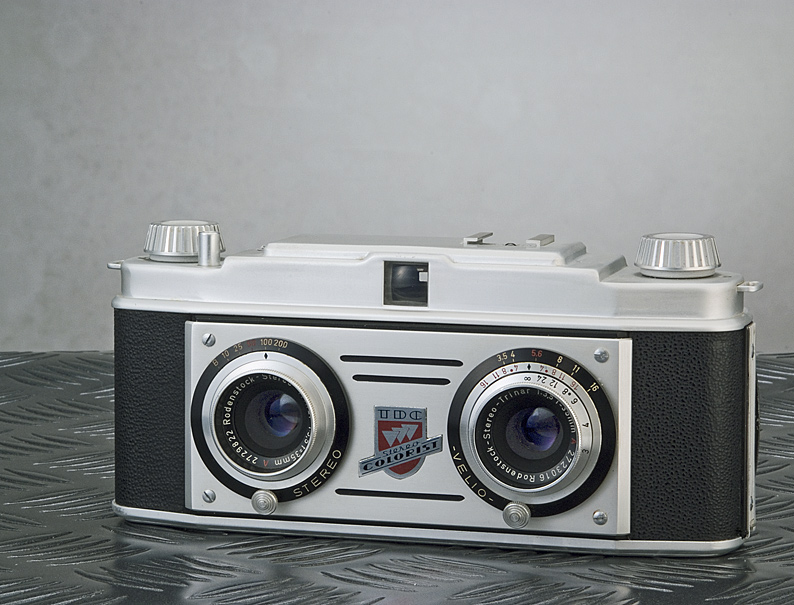

35 mm viewfinder stereo camera |
|
Manufacturer |
Bodensee Kamerawerke, Überlingen, Germany, for Three Dimension Company, Chicago, USA |
|
Year Introduced |
About 1954 |
|
Film |
135 cartridge |
|
Size |
180 x 80 x 60 mm (W x H x D) |
|
Weight |
660 grams (882 grams with strap and everready case) |
|
Lens Separation |
70.00 mm |
|
Image Format |
22.50 x 24.10 mm (W x H) |
|
Image Window Separation |
71.10 mm |
|
Lenses |
Rodenstock Stereo-Trinar (glass, matched),1:3.5/35 mm, no filter thread, outer diameter: 28.36 mm |
|
Diaphragms |
Iris diaphragms between the lenses, continuously adjustable f/3.5 to f/16 |
|
Focusing |
3' - infinity (0,91 m - infinity) |
|
Shutter |
Mechanical Velio Central Shutter between the lenses, cocking with film transport. |
|
Shutter Speeds |
1/10, 1/25, 1/50, 1/100, 1/200 sec. and "B" |
|
Viewfinder |
Newton viewfinder (approx. 0.5x) |
|
Rangefinder |
n/a |
|
Film Loading |
Manual |
|
Film Transport |
Manual, with knob by 10 sprocket holes (= 47.5 mm), sprocket wheels on top and bottom |
|
Film Rewinding |
manual. with rewind knob |
|
Frame Counter |
Additive, 1 to 28. Manual reset. |
|
Flash Contact |
Hot shoe |
|
Tripod Socket |
¼“ / 20 TPI, in the center |
|
Selftimer |
n/a |
|
Special Features |
latches for carrying-strap, depth-of-field scale, cable release provision |
|
Accessories |

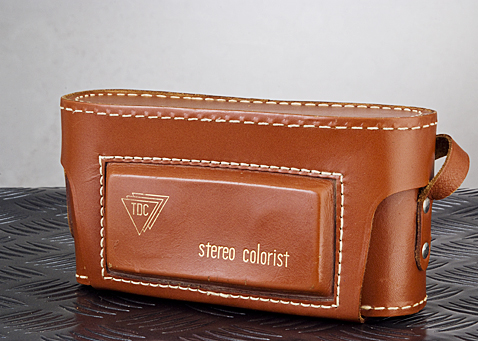

Operating instructions, everready case |
|
Notes |
n/a |
|
|
|
|
|
|
|
|
|
